Adding Grass

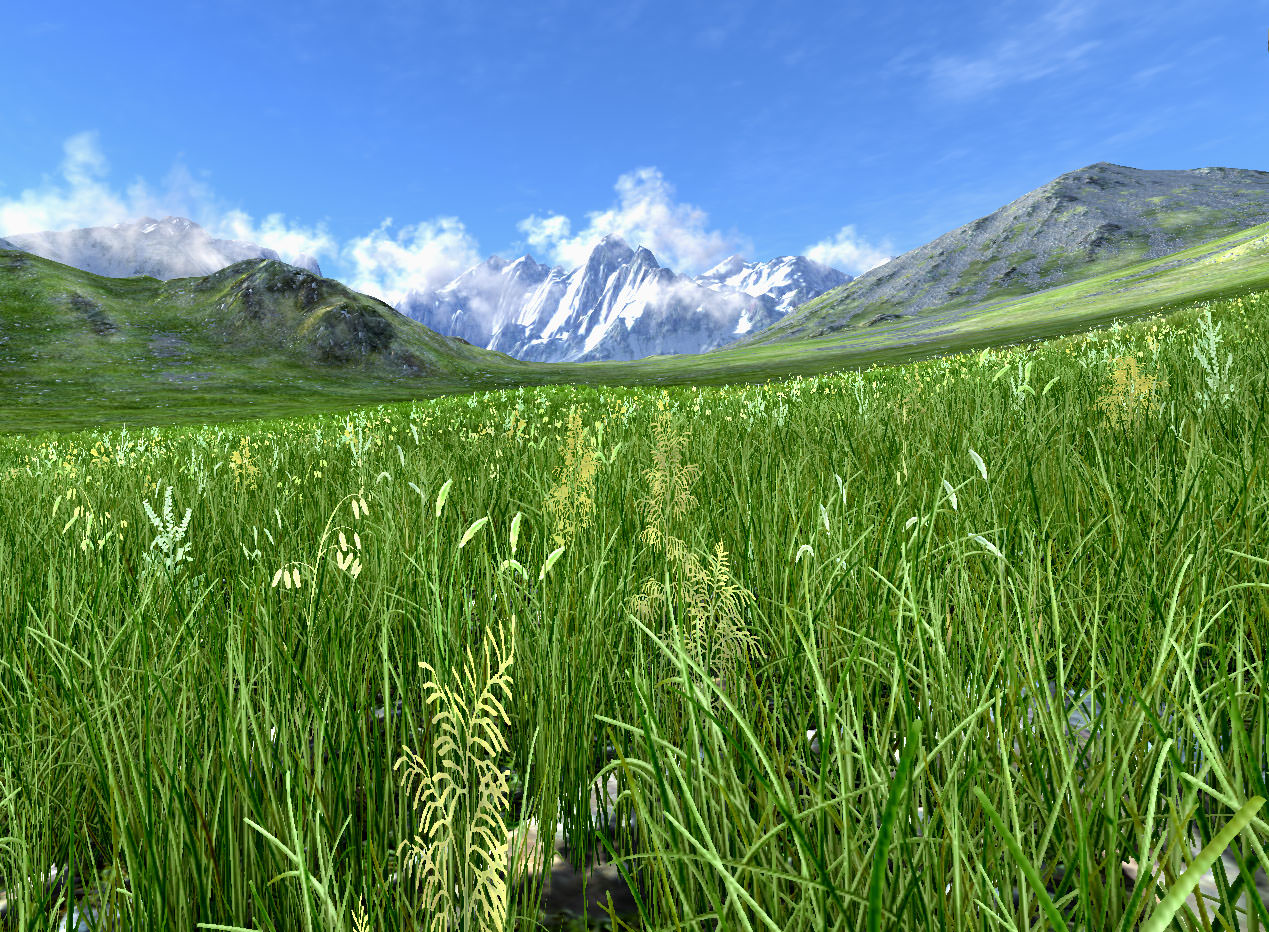

The article provides the tips and tricks how to create animated grass, swaying and moving as if with the wind. Your grass will also realistically vary in color across the field, so that it does not look unnatural like a freshly-painted lawn. Moreover, you will keep the frame rate high when rendering all these polygons. No matter how big your grass field should be (it can cover the whole terrain), grass appears only around the camera. And here is a first tip: grass looks better upon a hilly terrain. As for planes, low and non-dense grass would be a reasonable choice.

Required Textures

The textures that are required to set up grass (within this tutorial) are the following:

All the textures used in this tutorial are taken from Valley Benchmark: <Unigine SDK Browser>/demos/valley_demo/demos/valley/textures. The benchmark can be added via UNIGINE SDK Browser.
  • Diffuse textures. Within this tutorial, we will use 2 diffuse textures: one for regular grass and one for grass of varioustypes. Both textures should contain4 slots in a row and any number of such rows.

    Diffuse Texture for Regular Grass

    Diffuse Texture for Grass of Various Types
  • Spatial noise texture (RGB). It will cover the whole terrain and allows you to color grass differently in all locations.
    Spatial noise texture is used to color the grass that has the gray diffuse texture or to add irregularity to the grass that has the colored diffuse texture.

    This texture is generated based on the terrain's albedo texture colors.

    The texture does not have the same size as the terrain, but should meet the following requirements:
    • Dimensions of the texture should be equal to some power of two (for example, 1024 ×  1024 ,2048 ×  2048 and so on).
    • Dimensions of the texture should be proportional to the terrain size. For example, if you have the 4096 ×  4096 terrain, the texture should not be256 ×  512 .
    • Dimensions of the texture should be chosen so that to get the result of appropriate quality after mapping pixels to the terrain. For example, if you have the 4096 ×  4096 terrain and the1024 ×  1024 texture, 1 pixel of this texture will be mapped to cover 4 units of the terrain. If such quality is enough, you can use this texture. Otherwise, you should create a new one of an appropriate size.
    Within this tutorial, for the 8193 ×  8193 terrain,2048 ×  2048 texture will be enough (1 pixel will be mapped to cover 4 units).

  • Mask texture (RGBA8) that determines spreading of grass across the terrain. This texture is generated based on the terrain's height map. For example, for the 8193 ×  8193 terrain, the reasonable size could be1024 ×  1024 (see details on choosing the size of the textureabove).

    Each channel of the mask (R, G, B and A) controls if the grass from the 1st, 2nd, 3rd and 4th columns (respectively) is rendered or not. The grass will grow only across areas with a channel color value.

    Within this tutorial, one mask texture will be used for both regular grass and grass of various types. So the grass from all columns of both textures will be rendered where white color is. The mask can be found in the <Unigine SDK Browser>/demos/valley_demo/demos/valley/masks folder.

Required Settings

You may need to increase the precision of the depth buffer. Otherwise, flickering of grass in the distance may occur.
Click on the Camera panel and increase the Near value (the near clipping plane) up to 0.3.

Step 1. Prepare World

Before adding and setting up grass, you should prepare a world. If you have a set up world with the terrain, the sun and the atmosphere, you can use it. If you don't have one, you can slightly modify the Valley Benchmark world (can be added via UNIGINE SDK Browser): disable all child nodes of the terrain node on the Nodetab of theNodeswindow.

Within this tutorial the modified Valley Benchmark world will be used.

Step 2. Add Grass

Within this tutorial, we are going to add 2 types of grass: the regular grass and the grass of various types.

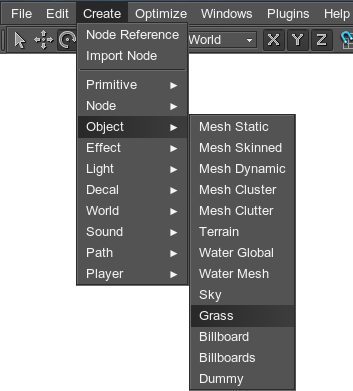

  1. On the Menu bar, choose Create -> Object -> Grass and drop the grass somewhere in the world.

    2 Grass Objects Added to World

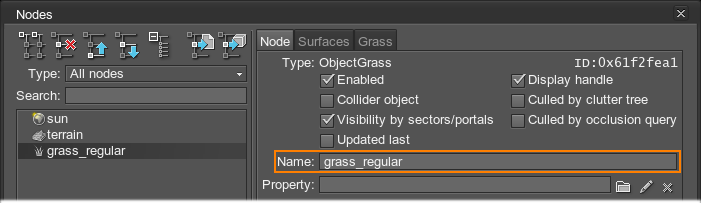

  2. On the Menu bar, choose Windows -> Nodes (or press N) to open the Nodes window with node settings. Rename the grass objects, if necessary.

  3. Go to the Surfacestab and define the area of visibility for the future grass field. All the grass blades cannot be rendered all at once, especially, if the field is huge. Instead, they are going to be rendered in a small area around the camera.

    Set the Maximum Visibledistance to4 units. Within this distance from the camera all grass blades are visible.

  4. Set the Maximum Fadedistance to90 units. Over this distance the grass will gradually fade out according to the alpha channel value of its diffuse texture.

  5. Set the real size of the grass field: go to the Grasstab and setSize X(along the X axis) andSize Y(along the Y axis) to repeat the size of the8193 × 8193 terrain.

    In the result, you will see that the grass polygons appear and fade out within the set distance (94 units).

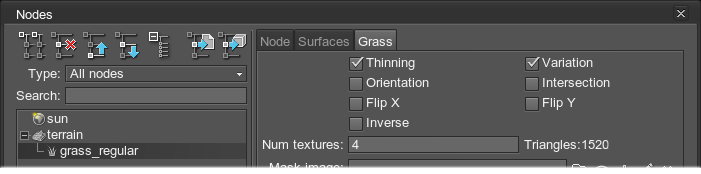

  6. Add the grass object as a childnode to the terrain, so it can grow upon the terrain repeating its relief: press and holdAltanddrag the grass node to the terrain one.

  7. Check Intersectionoption to enable intersection with a parent node.

    Now the grass grows upon the terrain (repeats its relief), but the field is still not positioned properly:

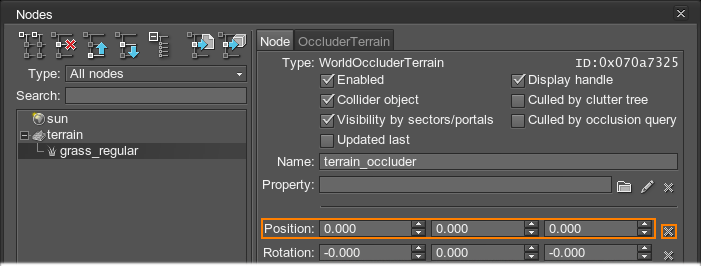

  8. Go to the Nodetab and reset position of the grass object to0 relative to its parent.

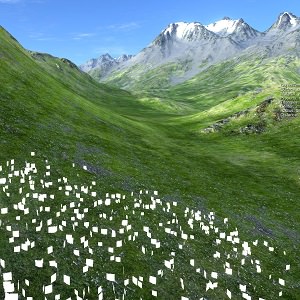

    Position of the grass object becomes synchronized with the terrain:
  9. Select the grass_regular node and press Ctrl + Dto clone the node and then rename it tograss_variation as described in step 2 above. The new grass node will be added as a child to the terrain node automatically.
  10. Currently, coordinates of the grass quads of both objects are coincide. To avoid grass quads flickering, position grass quads of the grass_regular object differently: click Randomize to generate a random seed.

Step 3. Set Up Grass Color

Now you should create materials for the grass objects before tweaking their spread any further.

  1. On the Menu bar, choose Windows -> Materials (or press M) to open the Materials window with material settings. For further actions, you should already have a material library associated with the world (learn how to add a new material library here).

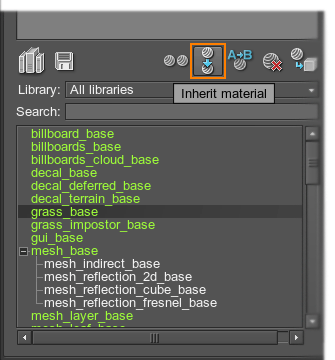

  2. Select a base (and therefore unchangeable) grass_basematerial in the list and clickInherit material.

  3. Choose the world-associated material library where to save a new material and specify its name.

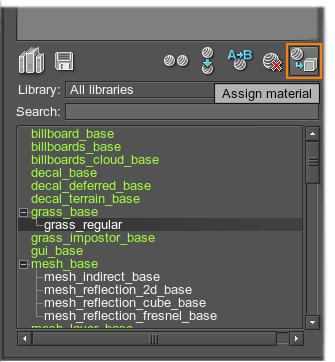

  4. Select the grass_regular node and click Assign material to apply it to the selected node.

  5. Select the created grass_regular material in the list of materials and click Inherit material (see step 2 above).
    In this case, a new material will inherit all settings of the custom grass_regular material (e.g. slope, stem noise and so on). Anyway, you still can inherit a material for the 2nd grass object from the base grass_base material and set specific settings for it.
  6. Choose the world-associated material library where to save a new material and specify its name.

  7. Select the grass_variation node and click Assign material to apply it to the selected node (see the step 4 above).
  8. Adjust the materials of the grass objects: go to the Texturestab and load thediffuse texture.

    You may want to manually edit the alpha channel of the mipmaps, because on automatically generated mipmaps thin blades may disappear incorrectly or unpleasantly.

  9. Select paths to the diffuse textures for the grass_regular and grass_variation materials. You can use the following textures:
    • The <Unigine SDK Browser>/demos/valley_demo/demos/valley/textures/ texture for the grass_regular material.
    • The <Unigine SDK Browser>/demos/valley_demo/demos/valley/textures/ texture for the grass_variation material.

    The diffuse textures are now loaded, but the number of rows in these textures is wrong:

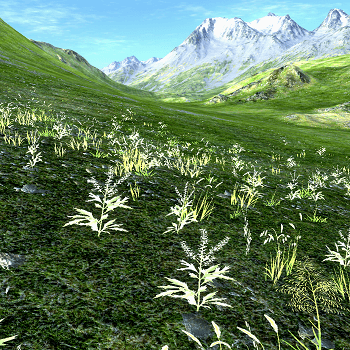

  10. Go to the Grasstab of theNodes window. Set the proper number of horizontal rows in the diffuse textures in the Num texturesfield. For example, we only have1 row for the regular grass and 2 rows for the grass of various types.
    As you can see, the grass with the diffuse textures assigned looks unnatural on the terrain: its color remains the same regardless of its location.

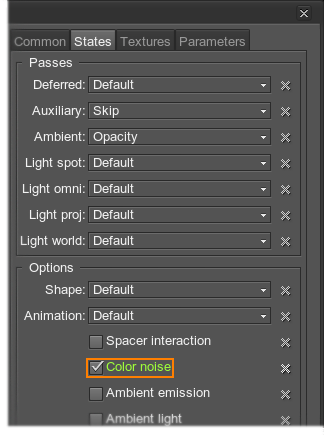

  11. Go to the Statestab of theMaterials window. Check the Color noiseoption for thegrass_regular material. It will allow you to color blades of the regular grass differently across the whole field. The Color noise option will also be set for the grass_variation material.

  12. For the grass_variation material, go to the Statestab of theMaterials window and uncheck the Color noiseoption. It will allow the grass of various types to differ from the regular grass.

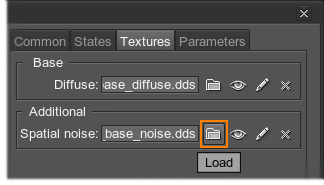

  13. Go to the Texturestab and load theSpatial noise texture.

  14. Select path to the spatial noise texture. You can use the following texture from Valley Benchmark:
    <Unigine SDK Browser>/demos/valley_demo/demos/valley/textures/

    The grass will be colored as follows:

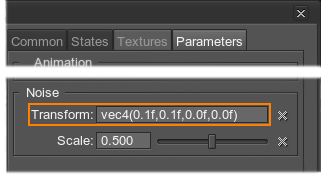

  15. Go to the Parameterstab of thegrass_regular material. Double-click on the Noise Transformfield (or modify the expression right in this field).

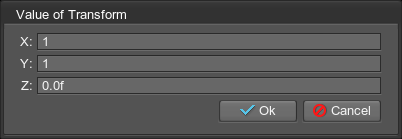

  16. Set the scale by X and Y axes to 1: in this case, the spatial noise texture will cover the entire terrain.

    You can see patches of dark green, light green and yellow:

  17. The colors are too vivid to match the terrain colors. Drop the Scaleto0.38 to dim the noise color.

  18. The blades are quite thin, so make them a little bit more transparent to light when it shines from behind: increase the Backparameter up to0.7 for the grass_regular material.

    The grass will become more transparent and lighter:

  19. Increase the Diffuseto0.75 to darken diffuse coloring of the regular grass.

    Diffuse = 1.0
    Diffuse = 0.75

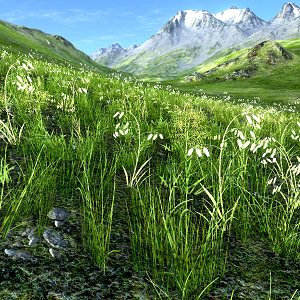

  20. For now, transparency and diffuse coloring values are the same for the grass_regular and grass_variation materials. Change these settings for the grass_variation: set the Backparameter to0.5 and the Diffuseto0.58.
    Back = 0.70; Diffuse = 0.75

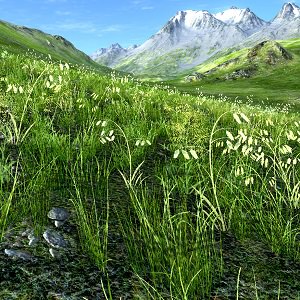

    Back = 0.50; Diffuse = 0.58

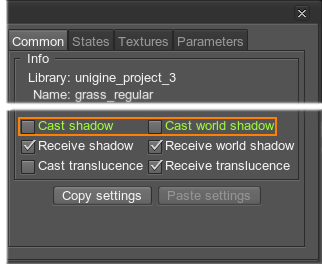

  21. For the grass_regular material, go to the Commontab and disable shadows from the grass:
    For the grass_variation material, shadows will be disabled automatically.

    The grass blends with the terrain smoother and that will allow us to make a denser looking filed:
    Shadows enabled

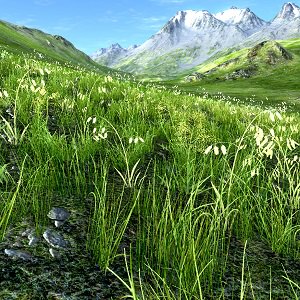

    Shadows disabled

Step 4. Set Up Grass Density and Spread

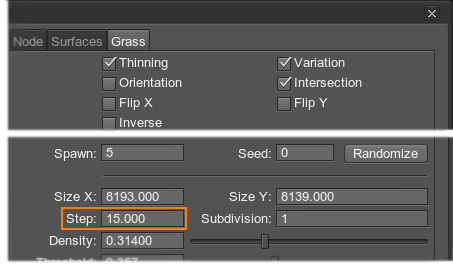

  1. First, set up the density of the grass. For the regular grass, go to the Grasstab ofNodes settings and drop the Step to 15. It will make the cells which are used to render the grass field smaller, however, this value is not so large to hit the performance when the cell is created.

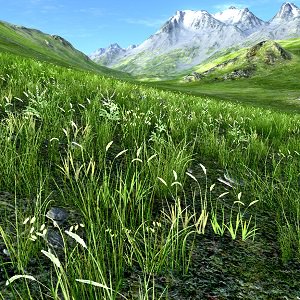

    The grass is regenerated. The density also changed, because it is defined for one cell. As we made the cell smaller, the grass turned out to be slightly more dense.
    Step = 40
    Step = 15

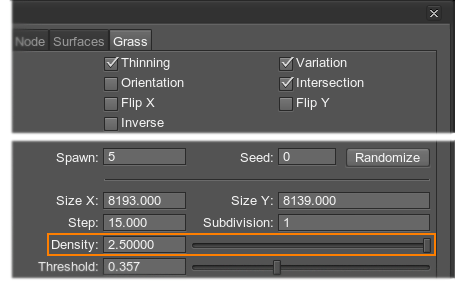

  2. Increase the Density of the regular grass in a cell to 2.5 to add more grass blades on the field. For the various grass, set this value to 0.5.

    Density (grass_regular) = 0.314; Density (grass_variation) = 0.1
    Density = 2.5

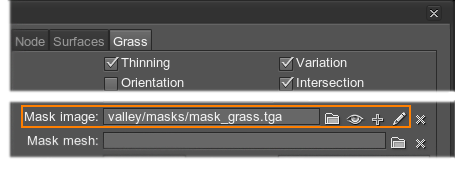

  3. It's time to tweak the spread of the grass. Click to load a Mask image that will specify the areas where the grass grows.
    Perform this step for both grass objects.

  4. Select a path to your mask texture, if any.

    The grass no longer grows on mountains peaks and stony areas:
    No Image Mask
    Image Mask Set for Grass

    To paint the image mask directly in the scene, use Mask Editor.
  5. Drop the Threshold to 0.3 to lower the mask intensity.
    Perform this step for both grass objects.

    This will increase the area that the grass covers:
    Threshold = 0.5
    Threshold = 0.3
  6. Usually the grass does not grow on the steep hillsides. Increase the Angle to 0.7 to make steep areas grassless.
    Perform this step for both grass objects.

    Now the spread of the grass is more realistic:
    Angle = 0.0
    Angle = 0.7
  7. Currently, all types of the grass of various types (in other words, slots of the diffuse texture of the grass_variation node) are spread uniformly across the grass field. However, in nature, one type of grass can predominate over the others or grow in small groups. To achieve this, change the Probabilityparameter so that one type of the grass will predominate over the other types according to the diffuse texture.

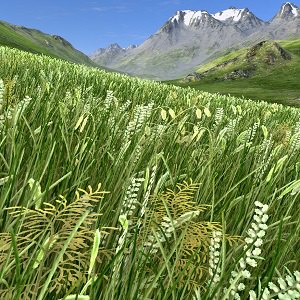

    For example, you can set the probability factor to 4 for the 1st column of the grass_various_d.ddstexture:
    Default Probability Factor

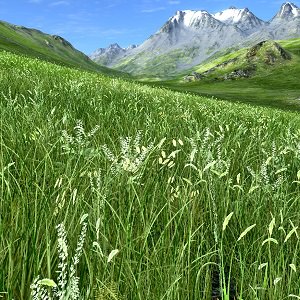

    Custom Probability Factor

Step 5. Set Up Grass Shape and Orientation

  1. When changing from bare areas to grassy ones, our grass starts to grow as small and thinned out. But on the stones, it does not look too good: Increase the Min height up to 1.2. In areas with low density (according to the mask) the grass will be higher. You can set different height values for each of four columns in the diffuse texture, or leave it the same for all.
    Perform this step for both grass objects.

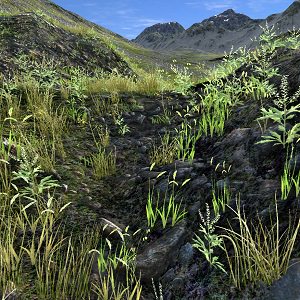

    Min height = 1
    Min height = 1.2
  2. Increase the Max height of the grass blades to 1.5 units. In areas with high density (according to the mask) the grass becomes higher. We'll use the same height for all four columns in the diffuse texture as well.
    Perform this step for both grass objects.

  3. We have set the mean value of the grass height. It is an average height that is randomized. As a result, higher and lower grass blades are randomly planted. However, the difference between the highest and the lowest is pretty big.

    Decrease Spread for Max height and Max height down to 0.1 units. It controls how blades can possibly vary in height. In our case, it will make the grass on the field more uniform in height.

    Perform this step for both grass objects.

  4. Check the Variation box, so that the grass blades from diffuse texture are flipped horizontally at random.
    Perform this step for both grass objects.

    No Variation
    Grass with Variation Flag Enabled

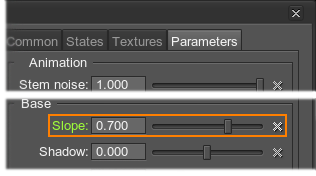

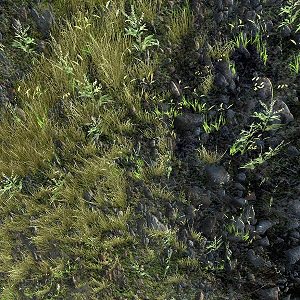

  5. From above the grass seems too flat. In the Materialswindow, go to theParameters tab and increase the Slopeto0.7 to make it more billboard-like.
    The slope will be the same for both the grass_regular and grass_variation materials.

    Slope = 0.5
    Slope = 0.7
  6. Grass blades are too thin and sometimes appear in dashed lines. Increase the Alpha up to 2 to make the blades look thicker and the grass denser.

Step 6. Set Up Grass Animation

In nature, grass isn't static. So, it is necessary to set up grass animation. It can be set via animation settings of the grass material, so that all grass polygons are animated uniformly. Or you can animate some specific area of the grass field by using animation fields.

Within this tutorial, only the first method will be used. The example on using grass with animation fields can be found here.

Perform this step for the grass_regular material. The inherited grass_variation material will have the same values.
  1. On the Parameters tab of the Materials window, set the Stem noiseto0 to make all the grass blades move uniformly. It will help to learn how to adjust the animation.

    Stem noise = 1
    Stem noise = 0
  2. Decrease the Stem offsetto0.1 to make the grass sway and stretch horizontally to a lesser degree.

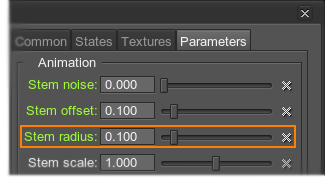

  3. Decrease the Stem radiusto0.1 so that the grass does not bend down to the ground.

  4. Increase the Stem scaleto2 to make the grass move two times faster.

  5. Increase the Stem noiseto2 to make the blades movement more random.

Step 7. Optimize Grass

Grass optimization means reducing the number of grass polygons rendered each frame and the number of DIP calls. To optimize the grass that we added and set up above, perform the following for both grass objects:

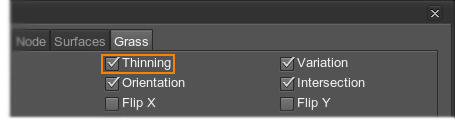

  1. Set the Thinning option to reduce the number of grass polygons rendered across the grass Fadedistance.

  2. Set the Spawn rate that controls the number of grass cells rendered each frame to 2.
    Of course, you can set this value to 1. However, too small spawn rate may cause popping of the grass quads on the approach of the camera to the grass field (especially at a low FPS value).
  3. Change the size of the cell Step to the optimal one: set it to 24.

    Within this tutorial, the optimal step is calculated as follows:

    Step = Maximum Visible Distance/4

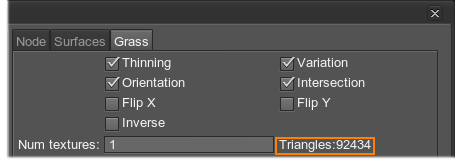

After changing the settings mentioned above in the step 7, you can compare the previous and the current number of grass triangles: simply check the Trianglescounter.
