Usage Examples
Working with Landscape Terrain via Code

Working with Landscape Terrain via Code

To see a terrain at least one Landscape Layer Map is required. Data of each Landscape Layer Map (heights, albedo, and masks) is stored in an .lmap file. To create such a file the LandscapeMapFileCreator class is used. If you want to load, modify, and apply settings stored in this file later - use the LandscapeMapFileSettings class.

Landscape Terrain rendering and modification is managed via the Landscape class.

There is a set of API classes used to manage the Landscape Terrain object:

ObjectLandscapeTerrain - managing general Landscape Terrain object parameters
TerrainDetail - managing terrain details, that define its appearance.Details are organized into a hierarchy, each of them can have an unlimited number of children. Details are attached to detail masks and are drawn in accordance with their rendering order (the one with the highest order shall be rendered above all others).
TerrainDetailMask - managing terrain detail masks. Each detail mask can have an unlimited number of details.
LandscapeFetch - getting terrain data at a certain point (e.g. a height request) or check for an intersection with a traced line.
LandscapeImages - to edit landscape terrain via API
LandscapeTextures - to edit landscape terrain via API

Creating a Terrain#

To create a Landscape Terrain based on arbitrary height and albedo maps the workflow is used:

Create a LandscapeMapFileCreator instance, set necessary parameters (grid size, resolution, etc.) and generate a new .lmap file based on specified albedo and height images (tiles) via the Run . Here you can add callbacks for different stages of creation
Create a LandscapeMapFileSettings instance, load target .lmap file for settings, set necessary parameters (opacity and blending for height and albedo data) and apply them
Create a new ObjectLandscapeTerrain object
Create a LandscapeLayerMap based on the previously created .lmap file

Preparing a Project#

Before we get to code perform the following:

Open the SDK Browser and create a new C# (.NET Core) or C++ project depending on the programming language selected.
Open your project in the UnigineEditor via the Open Editor button in the SDK Browser.
Save the following images to your computer:

Albedo Map Height Map
Drag the height.png file directly to the Asset Browser window to add it to your project. In the Import Dialog for your height map set Image Format to R32F and click Yes.
Drag the albedo.png file directly to the Asset Browser window too. In the Import Dialog for your height map set Texture Preset to Albedo (RGB - color, A - opacity) and click Yes.

Code#

Copy the source code below and paste it to the corresponding source files of your project.

In the AppWorldLogic.h file, define all parameters required for terrain creation, as well as the terrain itself with a layer map.

AppWorldLogic.h

Source code (C++)

#ifndef __APP_WORLD_LOGIC_H__
#define __APP_WORLD_LOGIC_H__

#include <UnigineLogic.h>
#include <UnigineStreams.h>
#include <UnigineObjects.h>
#include <UnigineImage.h>


class AppWorldLogic : public Unigine::WorldLogic
{
	// Layer map parameters
	// position, rotation and scaling factor along the Z axis
	Unigine::Math::Vec3 lmapPosition = Unigine::Math::Vec3::ZERO;
	float lmapRotation = 45.0f;
	float lmapHeightScale = 1.0f;

	// size of the layer map (in units)
	Unigine::Math::Vec2 lmapSize = Unigine::Math::Vec2(20.0f, 20.0f);

	// landscape layer map grid size (number of cells along X and Y axes)
	int lmapGridSizeX = 2;
	int lmapGridSizeY = 2;

	// resolution of a single tile of the layer map
	// (tile images to be used must have the same resolution)
	int lmapTileResolutionX = 512;
	int lmapTileResolutionY = 512;

	// layer map name
	Unigine::String lmapName = "map";

	// set of images for a single tile
	struct TileImages
	{
		Unigine::String albedoImagePath;
		Unigine::String heightImagePath;
	};

	// vector for the tileset data
	Unigine::Vector<TileImages> tiles;

	// pointers to the terrain and landscape map (at least one is required)
	Unigine::ObjectLandscapeTerrainPtr terrain;
	Unigine::LandscapeLayerMapPtr lmap;

public:
	AppWorldLogic();
	virtual ~AppWorldLogic();

	int init() override;

	int update() override;
	int postUpdate() override;
	int updatePhysics() override;

	int shutdown() override;

	int save(const Unigine::StreamPtr &stream) override;
	int restore(const Unigine::StreamPtr &stream) override;

	void makeTileset();
	void applySettings();
	void createTerrain();

	// callbacks for different stages of landscape layer map creation
	void OnCreatorCreate(Unigine::LandscapeMapFileCreatorPtr creator, Unigine::LandscapeImagesPtr images, int x, int y);
	void OnCreatorBegin(Unigine::LandscapeMapFileCreatorPtr creator);
	void OnCreatorProgress(Unigine::LandscapeMapFileCreatorPtr creator);
	void OnCreatorEnd(Unigine::LandscapeMapFileCreatorPtr creator);
};

#endif // __APP_WORLD_LOGIC_H__

Insert the following code implementing terrain creation into the AppWorldLogic.cpp file.

NoticeUnchanged methods of the AppWorldLogic class are not listed here, so leave them as they are.

AppWorldLogic.cpp

Source code (C++)

#include "AppWorldLogic.h"
#include <UnigineConsole.h>
#include <UnigineFileSystem.h>
#include <UnigineInput.h>
#include <UnigineGame.h>
#include <UnigineWorld.h>
using namespace Unigine;
using namespace Math;



AppWorldLogic::AppWorldLogic()
{
}

AppWorldLogic::~AppWorldLogic()
{
}

// callback to be fired on creating a tile
void AppWorldLogic::OnCreatorCreate(LandscapeMapFileCreatorPtr creator, LandscapeImagesPtr images, int x, int y)
{
	// get number of the current tile
	int tileNumber = x * lmapGridSizeY + y;
	Log::message("Create tile %d\n", tileNumber);

	// set albedo for current tile
	if (FileSystem::isFileExist(tiles[tileNumber].albedoImagePath))
	{
		ImagePtr albedoImage = Image::create(tiles[tileNumber].albedoImagePath);
		if (albedoImage && (albedoImage->getWidth() == lmapTileResolutionX) && (albedoImage->getHeight() == lmapTileResolutionY))
		{
			ImagePtr albedo = images->getAlbedo();
			albedo->create2D(albedoImage->getWidth(), albedoImage->getHeight(), albedoImage->getFormat(), albedoImage->getNumMipmaps());
			albedo->copy(albedoImage, 0, 0, 0, 0, albedoImage->getWidth(), albedoImage->getHeight());
		}
		else
			Log::error("The albedo image cannot be loaded, or its resolution does not match the resolution of tile.\n");
	}
	else
		Log::error("Albedo file does not exist.\n");

	// set height for current tile
	if (FileSystem::isFileExist(tiles[tileNumber].heightImagePath))
	{
		ImagePtr heightImage = Image::create(tiles[tileNumber].heightImagePath);
		if (heightImage && (heightImage->getWidth() == lmapTileResolutionX) && (heightImage->getHeight() == lmapTileResolutionY))
		{
			ImagePtr height = images->getHeight();
			height->create2D(heightImage->getWidth(), heightImage->getHeight(), heightImage->getFormat(), heightImage->getNumMipmaps());
			height->copy(heightImage, 0, 0, 0, 0, heightImage->getWidth(), height->getHeight());
		}
		else
			Log::error("The height image cannot be loaded, or its resolution does not match the resolution of tile.\n");
	}
	else
		Log::error("Height file does not exist.\n");
}

// callback to be fired on beginning the landscape map file generation process
void AppWorldLogic::OnCreatorBegin(LandscapeMapFileCreatorPtr creator)
{
	Log::message("--------------------\n");
	Log::message("--- %s creation started ---\n", creator->getPath());
	Log::message("lmap creator begin\n");
}

// callback to be used for visualizing landscape map file generation progress
void AppWorldLogic::OnCreatorProgress(LandscapeMapFileCreatorPtr creator)
{
	Log::message("lmap creator progress: %d\n", creator->getProgress());
}

// callback to be fired on beginning the landscape map generation process
void AppWorldLogic::OnCreatorEnd(LandscapeMapFileCreatorPtr creator)
{
	Log::message("lmap creator end\n");
	Log::message("--- %s created ---\n", creator->getPath());
	Log::message("--------------------\n");

	// after creating .lmap file apply settings
	applySettings();

	// and create terrain
	createTerrain();
}

// function applying .lmap file settings
void AppWorldLogic::applySettings()
{
	// load target .lmap file for settings
	LandscapeMapFileSettingsPtr settings = LandscapeMapFileSettings::create();
	settings->load(FileSystem::getGUID(String::format("%s.lmap",lmapName.get())));

	// set parameters and apply them
	if (settings->isLoaded())
	{
		// set alpha blend for height and albedo
		settings->setHeightBlending(0);
		settings->setAlbedoBlending(0);

		settings->setEnabledHeight(true);
		settings->setEnabledAlbedo(true);

		// disable opacity for height and albedo
		settings->setEnabledOpacityAlbedo(false);
		settings->setEnabledOpacityHeight(false);

		settings->apply();
	}
}
// function creating the Landscape Terrain object using the generated .lmap file
void AppWorldLogic::createTerrain()
{
	// create new terrain
	terrain = ObjectLandscapeTerrain::create();
	terrain->setActiveTerrain(true);
	terrain->setCollision(true, 0);

	// create layer map based on created .lmap file
	lmap = LandscapeLayerMap::create();
	lmap->setParent(Landscape::getActiveTerrain());
	lmap->setPath(String::format("%s.lmap", lmapName.get()));
	lmap->setName(lmapName.get());
	lmap->setSize(lmapSize);
	lmap->setHeightScale(lmapHeightScale);
	lmap->setWorldPosition(lmapPosition);
	lmap->setWorldRotation(quat(vec3::UP, lmapRotation));
}

// function creating the Landscape Terrain object using the generated .lmap file
void AppWorldLogic::makeTileset()
{
	// filling
	TileImages timg;
	timg.albedoImagePath = "albedo.png";
	timg.heightImagePath = "height.png";
	int n_tiles = lmapGridSizeX * lmapGridSizeY;
	while (tiles.size() < n_tiles)
		tiles.append(timg);
}

int AppWorldLogic::init()
{
	// set the camera
	Game::getPlayer()->setPosition(Vec3(-15.0f, 3.0f, 8.0f));
	Game::getPlayer()->worldLookAt(Vec3(-1.0f, 15.0f, 0.0f));

	// disable nodes created in the template world by default
	NodePtr content_root = World::getNodeByName("content");
	if (content_root)
		content_root->setEnabled(false);

	//enable displaying console messages
	Console::run("show_messages 1");

	// collect the tileset
	makeTileset();

	// create .lmap file based on tiles with albedo and height images
	LandscapeMapFileCreatorPtr lmapCreator = LandscapeMapFileCreator::create();
	lmapCreator->setGrid(ivec2(lmapGridSizeX, lmapGridSizeY));
	lmapCreator->setResolution(ivec2(lmapTileResolutionX * lmapGridSizeX, lmapTileResolutionY * lmapGridSizeY));

	lmapCreator->setPath(String::format("%s.lmap", lmapName.get()));

	// add callbacks for different stages of *.lmap file creation
	lmapCreator->addCreateCallback(MakeCallback(this, &AppWorldLogic::OnCreatorCreate));
	lmapCreator->addBeginCallback(MakeCallback(this, &AppWorldLogic::OnCreatorBegin));
	lmapCreator->addProgressCallback(MakeCallback(this, &AppWorldLogic::OnCreatorProgress));
	lmapCreator->addEndCallback(MakeCallback(this, &AppWorldLogic::OnCreatorEnd));

	// start the creation process
	lmapCreator->run();

	return 1;
}

// ...

Modifying Terrain By Adding New Layer Maps#

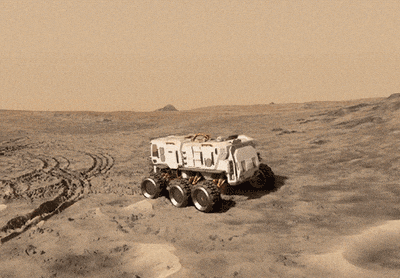

Spawn new Landscape Layer Maps (LandscapeLayerMap) to modify terrain surface, these layer maps can represent vehicle tracks, chunks of trenches, or pits. This way is similar to using Decals: each layer is a separate node, so you can control each modification separately. Moreover, using Landscape Layer Maps implies no data density limits, enabling you to achieve realistic results with high-quality insets.

Adding Assets#

Let's create a new layer map for a crater, to do so, perform the following actions:

Save the following images to be used for the crater to your computer:

Crater Albedo Map Crater Height Map
Switch to Unigine Editor and Drag the crater_height.png file directly to the Asset Browser window to add it to your project (just like you did before for the terrain's Heightmap). In the Import Dialog for your height map set Image Format to R32F and click Yes.
Drag the crater_albedo.png file directly to the Asset Browser window (just like you did before for the terrain's Albedo map). In the Import Dialog for your albedo map set Texture Preset to Albedo (RGB - color, A - opacity) and click Yes.
Select Create -> Create Landscape Layer Map in the Asset Browser
Enter a name for the layer map: crater
Select your new crater.lmap asset and adjust its settings as shown below (assign our images, select blending mode and adjust heights range for the crater):
Click Reimport and process to the Code section below.

Code#

So, we have a layer map file representing a crater (crater.lmap). To add a crater to the landscape surface at the desired location we simply create a new LandscapeLayerMap using our file and set its size and transformation.

Let's implement a method spawning a crater at a specified location (AddCrater()):

Source code (C++)

LandscapeLayerMapPtr AddCrater(float x, float y) {
	// create a new layer map
	LandscapeLayerMapPtr crater_lmap = LandscapeLayerMap::create();

	// add the layer map as a child to the active terrain
	crater_lmap->setParent(Landscape::getActiveTerrain());

	// set a path to the crater.lmap file representing a crater
	crater_lmap->setPath(String::format("crater.lmap"));
	crater_lmap->setName("crater");

	// set the size of the crater layer to 5x5 units
	crater_lmap->setSize(Vec2(5.0f, 5.0f));

	// set the height scale multiplier
	crater_lmap->setHeightScale(0.5f);

	// set the position and rotation of the new layer
	crater_lmap->setWorldPosition(Vec3(x, y, 0.0f));
	crater_lmap->setWorldRotation(quat(vec3::UP, 35.0f));

	// set the order of the new layer to place is above the first one (basic)
	crater_lmap->setOrder(2);
	return crater_lmap;
}

NoticeAlthough layer maps are relatively light and fast, genereating too many of them may drop performance.

This approach is non-destructive (i.e., it does not irreversibly change initial terrain data). To see the underlaying layer again in its initial state simply disable an overlaying layer map:

Source code (C++)

crater_lmap->setEnabled(false);

For example, after disabling a layer map representing a crater, you'll have the surface looking just the way it was before the explosion.

To illustrate that let's add the AddCrater() method described above to our AppWorldLogic.cpp file, declare a vector to store all spawned craters, and add handlers for Enter key (spawn a new crater) and Backspace key (show/hide all craters) in the AppWorldLogic::update() method:

Source code (C++)

// ...
// declare a vector to store craters
Unigine::Vector<Unigine::LandscapeLayerMapPtr> craters;

// ...
int AppWorldLogic::update()
{
	// ...
	// spawn a new crater at a random point on hitting Backspace
	if (Input::isKeyDown(Input::KEY_BACKSPACE))
		craters.append(AddCrater(Game::getRandomFloat(0.0f, lmapSize.x), Game::getRandomFloat(0.0f, lmapSize.y)));

	// toggle visibility for all spawned craters on hitting Enter to show initial landscape state
	else if (Input::isKeyDown(Input::KEY_RETURN))
		for (Vector<LandscapeLayerMapPtr>::Iterator it = craters.begin(); it != craters.end(); ++it)
			it->get()->setEnabled(!it->get()->isEnabled());
	return 1;
}
// ...
int AppWorldLogic::shutdown()
{
	// ...
	// delete all spawned craters
	for (Vector<LandscapeLayerMapPtr>::Iterator it = craters.begin(); it != craters.end(); ++it)
		it->get()->deleteLater();
	return 1;
}

GPU-Based Terrain Modification#

Terrain modification is performed in asynchronous mode on GPU side by calling the asyncTextureDraw method of the Landscape class, that commences a drawing operation. The operation itself is to be implemented inside a callback handler.

The workflow here is as follows:

Implement your GPU-based terrain modification logic in a callback function.
Set this callback function to be fired when a Texture Draw (GPU-based terrain modification) operation is performed by calling the addTextureDrawCallback() method.
Commence a GPU drawing operation by calling the asyncTextureDraw() method. Here you should specify the GUID of an .lmap file landscape layer map to be modified, the coordinates of the upper-left corner and the resolution of the segment of data to be modified, you should also define which data layers are to be affected (heights, albedo, masks) via a set of flags.
Notice
In case your modification requires additional data beyond the specified area as well as the data of other landscape layer maps (e.g. a copy brush) you can enable force loading of required data, in this case you should use this overload of the asyncTextureDraw() method.

Adding Assets#

Let us modify Heights and Albedo data of the terrain, so we need two custom maps for that. Save the following images to your computer and drag them to the Asset Browser window to add them to your project (just like you did before for the terrain's Albedo and Height maps):

Custom Albedo Map	Custom Height Map

Don't forget to set set Image Format to R32F for your height map and set Texture Preset to Albedo (RGB - color, A - opacity) for your albedo map and reimport them with new settings.

Code#

Insert the following code into the AppWorldLogic.cpp file.

NoticeUnchanged methods of the AppWorldLogic class are not listed here, so leave them as they are.

Source code (C++)

// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
// 												(1)
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

// images to be used for terrain modification
Unigine::ImagePtr custom_albedo_image1;
Unigine::ImagePtr custom_height_image1;

// callback to be fired on commencing a texture draw operation
void my_texture_draw(UGUID guid, int id, LandscapeTexturesPtr buffer, ivec2 coord, int data_mask)
{
	// preparing images for terrain modification
	// Note: image preparation block can be moved outside the callback, not to repeat these operations every time,
	// e.g. you can move this block to a place before calling the asyncTextureDraw() method
	{
		// create a new image to load a custom albedo map to
		custom_albedo_image1 = Image::create("custom_albedo.png");

		// set the format required for the albedo map - RGBA8
		custom_albedo_image1->convertToFormat(Image::FORMAT_RGBA8);

		// create a new image to load a custom height map to
		custom_height_image1 = Image::create("custom_height.png");

		// set the format required for the heightmap - R32F
		custom_height_image1->convertToFormat(Image::FORMAT_R32F);
	}

	// resize albedo and height images to fit the area to be modified
	custom_albedo_image1->resize(buffer->getResolution().x, buffer->getResolution().y);
	custom_height_image1->resize(buffer->getResolution().x, buffer->getResolution().y);

	// setting our custom image to the albedo buffer
	buffer->getAlbedo()->setImage(custom_albedo_image1);

	// setting our custom image to the height buffer
	buffer->getHeight()->setImage(custom_height_image1);

}

// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
// 												(2)
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
int AppWorldLogic::init()
{
	// ...
	// add a callback to be fired on a Texture Draw operation
	Landscape::addTextureDrawCallback(MakeCallback(my_texture_draw));
	return 1;
}

// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
// 												(3)
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
int AppWorldLogic::update()
{
	// ...
	if (Input::isKeyPressed(Input::KEY_SPACE)) {
		// get the first layermap that we're going to modify
		LandscapeLayerMapPtr lmap = checked_ptr_cast <LandscapeLayerMap> (terrain->getChild(0));

		// generate a new ID for the draw operation
		int id = Landscape::generateOperationID();

		// commence a Texture Draw operation for the selected landscape map at (10, 10) with the size of [512 x 512]
		Landscape::asyncTextureDraw(id, lmap->getGUID(), ivec2(10, 10), ivec2(512, 512),
									(int)(Landscape::FLAGS_FILE_DATA_HEIGHT | Landscape::FLAGS_FILE_DATA_ALBEDO));
	}
	return 1;
}

int AppWorldLogic::shutdown()
{
	// ...
	// clear TextureDraw callbacks
	Landscape::clearTextureDrawCallbacks();
	return 1;
}

Resulting Demonstration Code#

Copy the source code below and paste it to the corresponding source files of your project.

AppWorldLogic.h

Source code (C++)

#ifndef __APP_WORLD_LOGIC_H__
#define __APP_WORLD_LOGIC_H__

#include <UnigineLogic.h>
#include <UnigineStreams.h>
#include <UnigineObjects.h>
#include <UnigineImage.h>


class AppWorldLogic : public Unigine::WorldLogic
{
	// Layer map parameters
	// position, rotation and scaling factor along the Z axis
	Unigine::Math::Vec3 lmapPosition = Unigine::Math::Vec3::ZERO;
	float lmapRotation = 0.0f;
	float lmapHeightScale = 1.0f;

	// size of the layer map (in units)
	Unigine::Math::Vec2 lmapSize = Unigine::Math::Vec2(20.0f, 20.0f);

	// landscape layer map grid size (number of cells along X and Y axes)
	int lmapGridSizeX = 2;
	int lmapGridSizeY = 2;

	// resolution of a single tile of the layer map
	// (tile images to be used must have the same resolution)
	int lmapTileResolutionX = 512;
	int lmapTileResolutionY = 512;

	// layer map name
	Unigine::String lmapName = "map";

	// set of images for a single tile
	struct TileImages
	{
		Unigine::String albedoImagePath;
		Unigine::String heightImagePath;
	};

	// vector for the tileset data
	Unigine::Vector<TileImages> tiles;

	// pointers to the terrain and landscape map (at least one is required)
	Unigine::ObjectLandscapeTerrainPtr terrain;
	Unigine::LandscapeLayerMapPtr lmap;



public:
	AppWorldLogic();
	virtual ~AppWorldLogic();

	int init() override;

	int update() override;
	int postUpdate() override;
	int updatePhysics() override;

	int shutdown() override;

	int save(const Unigine::StreamPtr &stream) override;
	int restore(const Unigine::StreamPtr &stream) override;

	void makeTileset();
	void applySettings();
	void createTerrain();

	// callbacks for different stages of landscape layer map creation
	void OnCreatorCreate(Unigine::LandscapeMapFileCreatorPtr creator, Unigine::LandscapeImagesPtr images, int x, int y);
	void OnCreatorBegin(Unigine::LandscapeMapFileCreatorPtr creator);
	void OnCreatorProgress(Unigine::LandscapeMapFileCreatorPtr creator);
	void OnCreatorEnd(Unigine::LandscapeMapFileCreatorPtr creator);
};

#endif // __APP_WORLD_LOGIC_H__

AppWorldLogic.cpp

Source code (C++)

#include "AppWorldLogic.h"
#include <UnigineConsole.h>
#include <UnigineFileSystem.h>
#include <UnigineInput.h>
#include <UnigineGame.h>
#include <UnigineWorld.h>
using namespace Unigine;
using namespace Math;


// images to be used for terrain modification
Unigine::ImagePtr custom_albedo_image1;
Unigine::ImagePtr custom_height_image1;

// array of craters
Unigine::Vector<Unigine::LandscapeLayerMapPtr> craters;

// callback to be fired on commencing a texture draw operation
void my_texture_draw(UGUID guid, int id, LandscapeTexturesPtr buffer, ivec2 coord, int data_mask)
{
	// resize albedo and height images to fit the area to be modified
	custom_albedo_image1->resize(buffer->getResolution().x, buffer->getResolution().y);
	custom_height_image1->resize(buffer->getResolution().x, buffer->getResolution().y);

	// setting our custom image to the albedo buffer
	buffer->getAlbedo()->setImage(custom_albedo_image1);

	// setting our custom image to the height buffer
	buffer->getHeight()->setImage(custom_height_image1);
}

// method spawning a new crater at the specified location
LandscapeLayerMapPtr AddCrater(float x, float y) {
	// create a new layer map
	LandscapeLayerMapPtr crater_lmap = LandscapeLayerMap::create();

	// add the layer map as a child to the active terrain
	crater_lmap->setParent(Landscape::getActiveTerrain());

	// set a path to the crater.lmap file representing a crater
	crater_lmap->setPath(String::format("crater.lmap"));
	crater_lmap->setName("crater");

	// set the size of the crater layer to 5x5 units
	crater_lmap->setSize(Vec2(5.0f, 5.0f));

	// set the height scale multiplier
	crater_lmap->setHeightScale(0.5f);

	// set the position and rotation of the new layer
	crater_lmap->setWorldPosition(Vec3(x, y, 0.0f));
	crater_lmap->setWorldRotation(quat(vec3::UP, 35.0f));

	// set the order of the new layer to place is above the first one (basic)
	crater_lmap->setOrder(2);
	return crater_lmap;
}

// World logic, it takes effect only when the world is loaded.
// These methods are called right after corresponding world script's (UnigineScript) methods.
// callback to be fired on creating a tile
void AppWorldLogic::OnCreatorCreate(LandscapeMapFileCreatorPtr creator, LandscapeImagesPtr images, int x, int y)
{
	// get number of the current tile
	int tileNumber = x * lmapGridSizeY + y;
	Log::message("Create tile %d\n", tileNumber);

	// set albedo for current tile
	if (FileSystem::isFileExist(tiles[tileNumber].albedoImagePath))
	{
		ImagePtr albedoImage = Image::create(tiles[tileNumber].albedoImagePath);
		if (albedoImage && (albedoImage->getWidth() == lmapTileResolutionX) && (albedoImage->getHeight() == lmapTileResolutionY))
		{
			ImagePtr albedo = images->getAlbedo();
			albedo->create2D(albedoImage->getWidth(), albedoImage->getHeight(), albedoImage->getFormat(), albedoImage->getNumMipmaps());
			albedo->copy(albedoImage, 0, 0, 0, 0, albedoImage->getWidth(), albedoImage->getHeight());
		}
		else
			Log::error("The albedo image cannot be loaded, or its resolution does not match the resolution of tile.\n");
	}
	else
		Log::error("Albedo file does not exist.\n");

	// set height for current tile
	if (FileSystem::isFileExist(tiles[tileNumber].heightImagePath))
	{
		ImagePtr heightImage = Image::create(tiles[tileNumber].heightImagePath);
		if (heightImage && (heightImage->getWidth() == lmapTileResolutionX) && (heightImage->getHeight() == lmapTileResolutionY))
		{
			ImagePtr height = images->getHeight();
			height->create2D(heightImage->getWidth(), heightImage->getHeight(), heightImage->getFormat(), heightImage->getNumMipmaps());
			height->copy(heightImage, 0, 0, 0, 0, heightImage->getWidth(), height->getHeight());
		}
		else
			Log::error("The height image cannot be loaded, or its resolution does not match the resolution of tile.\n");
	}
	else
		Log::error("Height file does not exist.\n");
}

// callback to be fired on beginning the landscape map file generation process
void AppWorldLogic::OnCreatorBegin(LandscapeMapFileCreatorPtr creator)
{
	Log::message("--------------------\n");
	Log::message("--- %s creation started ---\n", creator->getPath());
	Log::message("lmap creator begin\n");
}

// callback to be used for visualizing landscape map file generation progress
void AppWorldLogic::OnCreatorProgress(LandscapeMapFileCreatorPtr creator)
{
	Log::message("lmap creator progress: %d\n", creator->getProgress());
}

// callback to be fired on beginning the landscape map generation process
void AppWorldLogic::OnCreatorEnd(LandscapeMapFileCreatorPtr creator)
{
	Log::message("lmap creator end\n");
	Log::message("--- %s created ---\n", creator->getPath());
	Log::message("--------------------\n");

	// after creating .lmap file apply settings
	applySettings();

	// and create terrain
	createTerrain();
}

// function applying .lmap file settings
void AppWorldLogic::applySettings()
{
	// load target .lmap file for settings
	LandscapeMapFileSettingsPtr settings = LandscapeMapFileSettings::create();
	settings->load(FileSystem::getGUID(String::format("%s.lmap", lmapName.get())));

	// set parameters and apply them
	if (settings->isLoaded())
	{
		// set alpha blend for height and albedo
		settings->setHeightBlending(0);
		settings->setAlbedoBlending(0);

		settings->setEnabledHeight(true);
		settings->setEnabledAlbedo(true);

		// disable opacity for height and albedo
		settings->setEnabledOpacityAlbedo(false);
		settings->setEnabledOpacityHeight(false);

		settings->apply();
	}
}
// function creating the Landscape Terrain object using the generated .lmap file
void AppWorldLogic::createTerrain()
{
	// create new terrain
	terrain = ObjectLandscapeTerrain::create();
	terrain->setActiveTerrain(true);
	terrain->setCollision(true, 0);

	// create layer map based on created .lmap file
	lmap = LandscapeLayerMap::create();
	lmap->setParent(Landscape::getActiveTerrain());
	lmap->setPath(String::format("%s.lmap", lmapName.get()));
	lmap->setName(lmapName.get());
	lmap->setSize(lmapSize);
	lmap->setHeightScale(lmapHeightScale);
	lmap->setWorldPosition(lmapPosition);
	lmap->setWorldRotation(quat(vec3::UP, lmapRotation));
}

// function creating the Landscape Terrain object using the generated .lmap file
void AppWorldLogic::makeTileset()
{
	// filling
	TileImages timg;
	timg.albedoImagePath = "albedo.png";
	timg.heightImagePath = "height.png";
	int n_tiles = lmapGridSizeX * lmapGridSizeY;
	while (tiles.size() < n_tiles)
		tiles.append(timg);
}
AppWorldLogic::AppWorldLogic()
{
}

AppWorldLogic::~AppWorldLogic()
{
}

int AppWorldLogic::init()
{
	// set the camera
	Game::getPlayer()->setPosition(Vec3(0.0f, lmapSize.y, 8.0f));
	Game::getPlayer()->worldLookAt(Vec3(lmapSize.x/2, lmapSize.y/2, 0.0f));

	// disable nodes created in the template world by default
	NodePtr content_root = World::getNodeByName("content");
	if (content_root)
		content_root->setEnabled(false);
	//enable displaying console messages
	Console::run("show_messages 1");

	// collect the tileset
	makeTileset();

	// create .lmap file based on tiles with albedo and height images
	LandscapeMapFileCreatorPtr lmapCreator = LandscapeMapFileCreator::create();
	lmapCreator->setGrid(ivec2(lmapGridSizeX, lmapGridSizeY));
	lmapCreator->setResolution(ivec2(lmapTileResolutionX * lmapGridSizeX, lmapTileResolutionY * lmapGridSizeY));

	lmapCreator->setPath(String::format("%s.lmap", lmapName.get()));

	// add callbacks for different stages of *.lmap file creation
	lmapCreator->addCreateCallback(MakeCallback(this, &AppWorldLogic::OnCreatorCreate));
	lmapCreator->addBeginCallback(MakeCallback(this, &AppWorldLogic::OnCreatorBegin));
	lmapCreator->addProgressCallback(MakeCallback(this, &AppWorldLogic::OnCreatorProgress));
	lmapCreator->addEndCallback(MakeCallback(this, &AppWorldLogic::OnCreatorEnd));

	// start the creation process
	lmapCreator->run();

	// preparing images for terrain modification
	// create a new image to load a custom albedo map to
	custom_albedo_image1 = Image::create("custom_albedo.png");

	// set the format required for the albedo map - RGBA8
	custom_albedo_image1->convertToFormat(Image::FORMAT_RGBA8);

	// create a new image to load a custom height map to
	custom_height_image1 = Image::create("custom_height.png");

	// set the format required for the heightmap - R32F
	custom_height_image1->convertToFormat(Image::FORMAT_R32F);

	// add a callback to be fired on a Texture Draw operation
	Landscape::addTextureDrawCallback(MakeCallback(my_texture_draw));
	return 1;
}

////////////////////////////////////////////////////////////////////////////////
// start of the main loop
////////////////////////////////////////////////////////////////////////////////

int AppWorldLogic::update()
{
	if (Input::isKeyDown(Input::KEY_BACKSPACE))// spawning a new crater at a random point
		craters.append(AddCrater(Game::getRandomFloat(0.0f, lmapSize.x), Game::getRandomFloat(0.0f, lmapSize.y)));
	else if (Input::isKeyDown(Input::KEY_RETURN))// hiding all craters to show initial landscape state
		for (Vector<LandscapeLayerMapPtr>::Iterator it = craters.begin(); it != craters.end(); ++it)
			it->get()->setEnabled(!it->get()->isEnabled());

	if (Input::isKeyPressed(Input::KEY_SPACE)) {
		// get the first layermap that we're going to modify
		LandscapeLayerMapPtr lmap = checked_ptr_cast <LandscapeLayerMap> (terrain->getChild(0));

		// generate new ID for the draw operation
		int id = Landscape::generateOperationID();

		// user's code (bounding to ID)
		// commence a Texture Draw operation for the selected landscape map at (10, 10) with the size of [512 x 512]
		Landscape::asyncTextureDraw(id, lmap->getGUID(), ivec2(10, 10), ivec2(512, 512), (int)(Landscape::FLAGS_FILE_DATA_HEIGHT | Landscape::FLAGS_FILE_DATA_ALBEDO));
	}
	return 1;
}

int AppWorldLogic::postUpdate()
{
	// The engine calls this function after updating each render frame: correct behavior after the state of the node has been updated.
	return 1;
}

int AppWorldLogic::updatePhysics()
{
	// Write here code to be called before updating each physics frame: control physics in your application and put non-rendering calculations.
	// The engine calls updatePhysics() with the fixed rate (60 times per second by default) regardless of the FPS value.
	// WARNING: do not create, delete or change transformations of nodes here, because rendering is already in progress.
	return 1;
}

////////////////////////////////////////////////////////////////////////////////
// end of the main loop
////////////////////////////////////////////////////////////////////////////////

int AppWorldLogic::shutdown()
{
	// delete all spawned craters
	for (Vector<LandscapeLayerMapPtr>::Iterator it = craters.begin(); it != craters.end(); ++it)
		it->get()->deleteLater();

	// clear TextureDraw callbacks on shutdown
	Landscape::clearTextureDrawCallbacks();
	return 1;
}

int AppWorldLogic::save(const Unigine::StreamPtr &stream)
{
	// Write here code to be called when the world is saving its state (i.e. state_save is called): save custom user data to a file.
	UNIGINE_UNUSED(stream);
	return 1;
}

int AppWorldLogic::restore(const Unigine::StreamPtr &stream)
{
	// Write here code to be called when the world is restoring its state (i.e. state_restore is called): restore custom user data to a file here.
	UNIGINE_UNUSED(stream);
	return 1;
}

Last update: 2021-04-01

Help improve this article

Was this article helpful?

Report a problem related to this article

(or select a word/phrase and press Ctrl+Enter)

Working with Landscape Terrain via Code

In This Article:

Creating a Terrain#

Preparing a Project#

Code#

Modifying Terrain By Adding New Layer Maps#

Adding Assets#

Code#

GPU-Based Terrain Modification#

Adding Assets#

Code#

Resulting Demonstration Code#
