Generating Vegetation

Vegetation is generated on the basis of landcover data available. The basic workflow is as follows:

1. Preparing a Basic Object

First, we create a basic object that will be used as a building block for generation of vegetation (e.g., grass, trees etc.). The following types of basic objects are supported:

  1. Create a basic object of the desired type.

  2. Specify parameters of the basic object in the Parameters window.

    Notice
    Intersections with parent object must be enabled for all types of basic objects. The intersection flag can be found on the tab of the Parameters window corresponding to the type of the object.

  3. Inherit a material, set all necessary textures and parameters and assign it to the basic object.

  4. Export your node to a .node file (e.g. grass.node) and then delete the node from the world.

  5. Now our basic object for grass (grass.node) is ready to use and you can delete it from the scene.

2. Adding a Landcover Data Source and Specifying Tags

Now, we add a landcover data source to be used for generation. If the data source is already added, you may skip to step 3.

  1. Open the Landscape Tool window, for this purpose on the Menu bar, click Windows -> Landscape.

  2. In the Sources panel, add necessary landcover data sources (see Specifying Data Sources section).

    Notice
    R8 and RGB8 mask textures are supported.
  3. Select each landcover data source from the ones you added in the Sources panel and specify parameters in the Parameters panel. Depending on the type of the source data (the geo-referenced or the source tileset one), the set of parameters differs. The parameters of the source with no geodata are the same as for the elevation data sources (except Tileset Elevation Settings).

    Parameters of Source With No Geodata
    Geo-Referenced Source Parameters

    Very often landcover data sources have insufficient density, which results in squared borders of grass-covered areas, etc. You can use data from vector sources to generate landcover objects and detail masks. Just rasterize a vector source to a landcover with any density you need and use it as usually. This feature is available via the Create landcover mask button in the Parameters window, when a desired vector data source is selected. In the window that opens you can specify vector tags to filter data for each target channel (up to 4 channels are supported).

  4. Add tags for each type of landcover objects you are going to generate by clicking Add button at the bottom of the Parameters panel and specifying a tag name. To remove a tag use Remove button.

    Notice
    You can't add tags named "height" and "mask" as these names are reserved for procedural refinement.
  5. For each tag you can specify a set of filters (OR) to select certain data from the landcover data source. You can add as many filters as necessary. This can be done as follows depending on the type of the landcover data source:

    • For an R8 texture data source - by setting the range of bits (from value, to value) to be treated as a certain type of vegetation.
    • For an RGBA8 texture data source - by selecting a base color and setting threshold value for a color gradient to be treated as a certain type of vegetation.
    Notice
    Use "+" (plus) button to add a filter, or "-" (minus) to remove one.
    1-channel R8 texture. 3-channel RGBA8 texture.
  6. Now all necessary tags and filters are added and you can proceed to the next step.

3. Specifying Vegetation Parameters

Now, we must specify basic objects created at the first step and bind them to the tags.

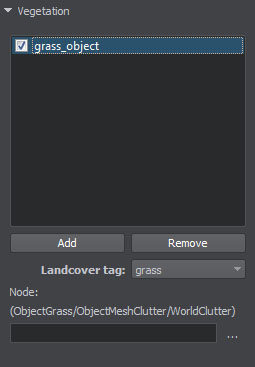

  1. On the Sources panel, select the Masks (Landcover) data source type and the following settings will be displayed in the Vegetation tab of the Parameters panel.

  2. Add a basic object for generation by clicking Add button and specify object's name. You can add as many objects as nesessary.

  3. For each basic object specify the following parameters:

    Node The path to the basic mesh object's *.node file.
    Landcover tag The tag for the selected landcover object from the list of tags specified at the second step.
  4. Check the basic objects you added at the previous step to be generated.
    Notice
    If you are going to update some of the existing vegetation objects, check only the changed ones. At that, the other objects will remain the same after terrain generation.
  5. Now all necessary basic objects are specified and bound to tags.

    Notice

    If the terrain is already generated and you want to add or change only vegetation - proceed to Step 4.

    Otherwise - return back to setting other parameters of terrain generation.

4. Generating Vegetation

Now you can generate vegetation by clicking Generate button and selecting Landcover objects option in the Steps window, in this case only landcover objects will be generated.

Here is a terrain fragment with grass generated on the basis of landcover data using the basic grass object created.

To regenerate some of the existing vegetation objects, check only those objects that should be updated, click Generate and select Landcover objects option. Only the specified vegetation objects will be regenerated. At that, the other ones (that haven't been checked) will remain the same.
