Environment
This section describes settings that control environment of the scene (scattering, haze, etc.). You can create some presets and smoothly combine them by specifying the intensity of a preset thus producing new environments.
| Enabled | The value indicating if rendering of environment of the scene is enabled. 开 by default.
Console access: render_environment (API control) |
||
|---|---|---|---|
| Correct Roughness | The Console access: render_environment_correct_roughness (API control) |
||
| Background Color | The background color vector. The Alpha channel of this color sets background transparency: lower alpha channel values produce darker background color. This parameter allows creating colored transparent background instead of rendering an environment cubemap. However, if the environment cubemap is rendered, the background color will always be rendered over the environment. Console access: render_background_color (API control)
|
Environment Presets#
The environment cubemap is tweaked in the Rendering panel -> Environment tab. The scattering can have up to 3 separate settings presets that can be blended by the Preset intensity scroll bars.
Presets work as layers: the first preset will overlay the zero one, the second will overlay the first and the zero ones. For example, you can set the zero preset for the clean and clear sky, set the first preset for the cloudy sky and lerp them smoothly.
Screen-Space Shadow Shafts Settings#
This set of parameters is used to configure rendering of volumetric Screen-Space Shadow Shafts. Shadow shafts can be rendered for both the Sun and the Moon.
| Mode | The rendering mode for volumetric screen-space shadow shafts. Shadow shafts (aka light shafts) can be generated in screen space for the Sun and the Moon to simulate the real world effect of crepuscular rays, or atmospheric shadowing of atmospheric in-scattering. These rays add depth and realism to any scene. Notice One of the following values:
Console access: render_screen_space_shadow_shafts_mode (API control) |
|---|---|
| Quality | The quality of screen-space shadow shafts. Defines the number of steps to be used when generating the texture for this effect. Lower quality values may result in noticeable banding effect especially in case of long shadow shafts. Medium quality is usually enough, but you can increase it if shafts are long enough and banding effect becomes noticeable. One of the following values:
Console access: render_screen_space_shadow_shafts_quality (API control) |
| Resolution | The resolution of the texture to which screen-space shadows are rendered. One of the following values:
Console access: render_screen_space_shadow_shafts_resolution (API control) |
| Shaft Length | The length of volumetric screen-space shadow shafts. Range of values: [0.0f, 100.0f]. The default value is : 3.0f. Console access: render_screen_space_shadow_shafts_length (API control) |
Scattering LUT Settings#
All the presets settings are identical. The scattering versatility is achieved mostly because of the scattering LUT textures.
Base#

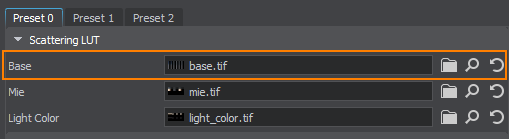

A 2D texture defining the base color of the sky, clouds, and haze.

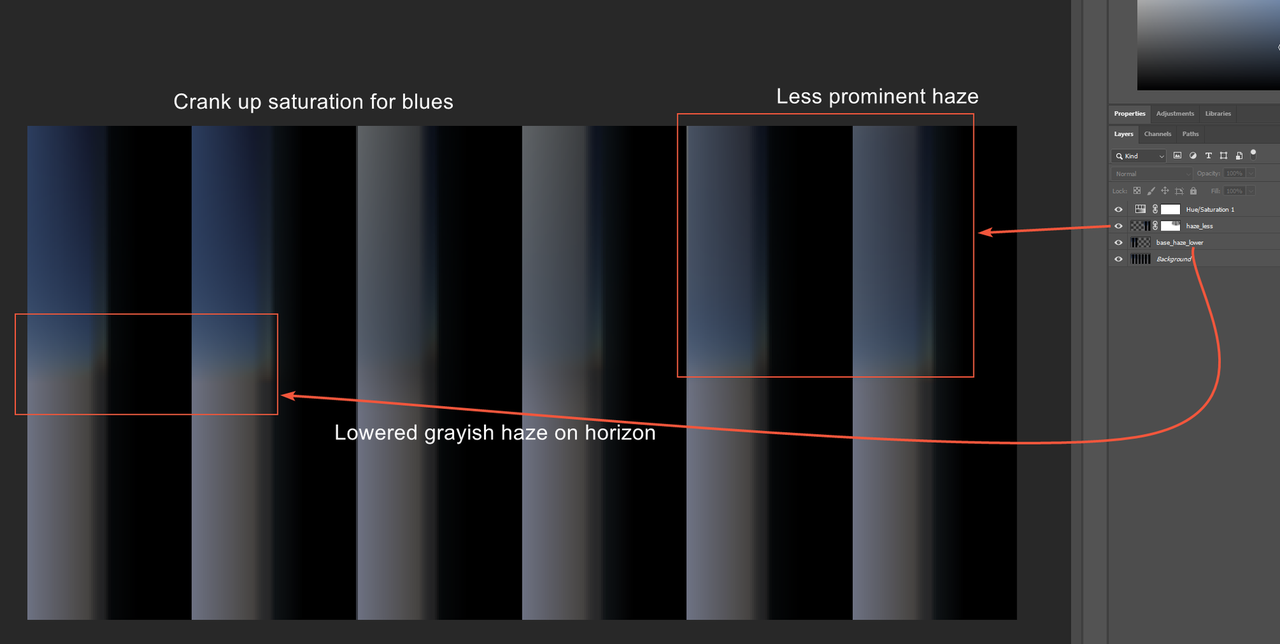

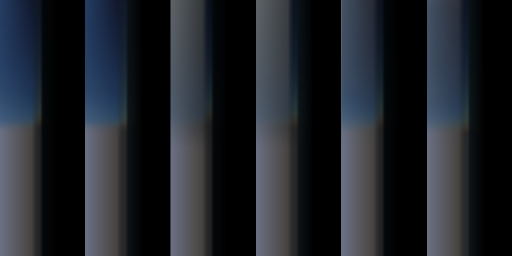

The texture consists of 6 columns, each for a specific reason:
- Color of the sky on the side opposite to the light source (to provide a possibility of rendering a shadow cast by a planet, if required)
- General sky color
- Color of clouds on the side opposite to the light source (to provide a possibility of rendering a shadow cast by a planet, if required)
- General clouds color
- Color of haze on the side opposite to the light source (to provide a possibility of rendering a shadow cast by a planet, if required)
- General haze color
The use of texture also depends on the Scattering mode of the active World light source. For the Sun scattering mode, the left side of each column is used:
- Left to right: the position of the Sun above the surface (time of day).
- Top to bottom: the gradient of the Sun.
For the Moon scattering mode, the right side of each column is used.
Mie#
A 2D texture for setting the Mie light (the color of the light around the light source) to simulate interaction of light with water, dust and other particles in the atmosphere.
The texture consists of 3 columns, each for a specific reason:
- Color of the sky around the light source
- Color of clouds around the light source
- Color of haze around the light source
The top square of each column is for the Sun, the bottom one — for the Moon scattering mode.
The texture (each column) is sampled vertically according to the time of day along the horizontal axis.
The Alpha channel stores the mask for the celestial body texture.
To simulate dense cloudiness without a visible celestial body (the Sun or the Moon), paint the Alpha channel black.
Light Color#
A 2D texture defining the color of LightWorld depending on the time of day.
The texture is split vertically (top for the Sun and bottom for the Moon scattering mode) and consists of 4 columns, each for a specific reason:
- Color to be used for objects in the world. The values in this column should differ only vertically, horizontally the value should be the same.
- Color to be used for clouds on the side opposite to the light source (to provide a possibility of rendering a shadow cast by a planet, if required)
- Color to be used for clouds
- Color to be used for clouds around the light source

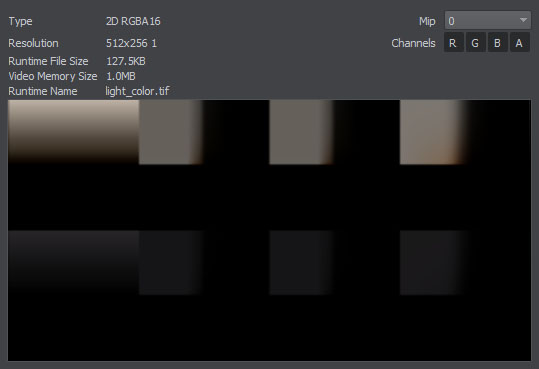

Sampling of the color for objects based on the sun angle (the black texture is used for the Base and Mie LUTs for clarity):
Environment Settings#
Environment settings are required for creating environment by means of panorama (cubemap).
| Texture |
A cube map defining the environment image; for example, HDRI environment map or skydome. You can download suitable images from such websites as polyhaven.com. Notice
We recommend using an HDR or uncompressed EXR image for better shading results. Note that lossy compression types B44, B44A, PIX24, which the EXR format may use, are not supported. |
|---|---|
| Color | The environment color multiplier, where alpha defines the visibility of a cubemap above scattering. This parameter is required when you need to display a sky with a photo texture and dynamic gradients at the same time. |
| Blur | A value defining blurring of the environment. |
| Rotation X | The rotation angle of the environment cubemap around the X axis. |
| Rotation Y | The rotation angle of the environment cubemap around the Y axis. |
| Rotation Z | The rotation angle of the environment cubemap around the Z axis. |
| Blend Mode | The blending mode for the environment cubemap. One of the following values:
Console access: render_environment_cubemap_blend (API control) |
Haze Settings#
This group of parameters set the atmosphere haze. It automatically uses the color from the scattering LUTs, so objects smoothly fade into the distance without any artifacts.
| Mode | The mode for the haze effect.
Console access: render_environment_haze (API control)
|
||
|---|---|---|---|
| Gradient Mode | The environment haze gradient mode. By using this option, you can make the haze look more realistic for a specific distance range.
Console access: render_environment_haze_gradient (API control) |
||
| Color |
The color of the haze. This value can be specified for both the Solid and Scattering haze modes: in the first case, the color will be used as is, in the second case, the color will be blended with the color from the sky LUTs.
|
||
| Max Distance | The distance starting at which the haze becomes completely solid, so nothing will be seen behind. For large terrains it is recommended to set this parameter equal to your camera's Far parameter. This is required for distant objects to fade into the distance instead of being cut sharply. | ||
| Density | The density of the haze. | ||
| Mie Intensity | Minimum Mie intensity value for geometry-occluded areas. This value specifies the fraction of Mie intensity visible when the surface is viewed from straight on. Setting this value to 1 disables the Fresnel effect. You can use this parameter together with Mie Fresnel Intensity and Mie Fresnel Power to control light occlusion from World light sources. Works for both, opaque and transparent objects. | ||
| Mie Front Side Intensity | Falloff of the Fresnel effect for Mie intensity. This parameter enables you to control occlusion of light from a World light source by the geometry. | ||
| Mie Fresnel Power | The power of the Fresnel effect for Mie visibility. Higher values will tighten up the areas affected, while lower ones will allow more areas to be affected by the Fresnel effect. |
Physically Based Haze Calculation Parameters#
This group of parameters is used for physically based calculation of the haze gradient.
In most cases there is no need to adjust default haze settings here. However, if you want to change haze color (e.g., make it a bit more bluish) we recommend you doing it via the Color multiplier above instead of tweaking Color Saturation for sunlight and ambient lighting, as this may cause problems with colors at sunset.
| Half Visibility Distance | Distance at which the visibility comprises 50%. There is no zero-visibility in the real world, so the half-visibility boundary is used to adjust haze distance. |
|---|---|
| Half Faloff Height | Height of the haze density gradient. The higher the value, the longer the haze desity reduces as the height grows, making the transition between the clear sky and haze smoother. |
| Start Height | Reference height value for the two parameters above (Half Visibility Distance and Half Faloff Height). |
| Ambient Light Intensity | Intensity of the impact of ambient lighting on haze (how much ambient lighting affects the haze). |
| Ambient Color Saturation | Intensity of the ambient color's contribution to the haze (how much the haze color is affected). |
| Sun Light Intensity | Intensity of the impact of the sunlight on haze (how much the sunlight affects the haze). |
| Sun Color Saturation |
Intensity of the sunlight color's contribution to the haze (how much the haze color is affected). Notice
"Sunlight color" here does not simply mean the color multiplier of the WorldLight source, but rather the Light Color in the Scattering LUT section above. |
Screen-Space Haze Global Illumination#
Screen-Space Haze Global Illumination (SSHGI) is a screen-space effect ensuring consistency of haze color with the current color of Global Illumination. Available for Physically Based haze gradient mode only.
| Screen-Space Haze Global Illumination | Toggles the value indicating if the Screen-Space Haze Global Illumination effect is enabled. |
|---|---|
| Colorization Threshold | The treshold value for scene depth used when setting haze color for the SSHGI effect in "information lost" areas on the screen.
Range of values: [0.0f, 1.0f]. The default value is : 0.5f. Console access: render_environment_haze_colorization_threshold (API control) |
| Colorization Intensity | The colorization intensity value that defines haze color in "information lost" areas on the screen.
This parameter is ignored when Colorization Threshold is set to 1, as there will be no "information lost" areas not covered by SSHGI. Range of values: [0.0f, 1.0f]. The default value is : 0.95f. Console access: render_environment_haze_colorization_intensity (API control) |
| Distance Min | The minimum distance at which Screen Space Haze GI calculations start to take effect. Range of values: [0.0f, inf]. The default value is : 98000.0f. Console access: render_environment_haze_screen_space_global_illumination_distance_min (API control) |
| Distance Max | The maximum distance within which Screen Space Haze GI calculations are performed. Range of values: [0.0f, inf]. The default value is : 100000.0f. Console access: render_environment_haze_screen_space_global_illumination_distance_max (API control) |
| Temporal Filter | The value indicating if temporal filtering for the Screen-Space Haze Global Illumination effect is enabled. 开 by default.
Console access: render_environment_haze_temporal_filter (API control) |
Intensity Settings#
Celestial Bodies Settings#
This group of parameters allows setting up the notable celestial bodies: the Sun and the Moon. By using these parameters, you can set the Sun and the Moon by using textures, adjust its intensity and color multipliers, specify the angular size of the celestial bodies. By default, values of the parameters are set for an observer on the Earth.
| Sun |
A texture that sets the Sun in the sky. On the picture below, the Sun Size is increased to demonstrate how the textures are applied:
The texture may also be used to imitate the extremely bright area around the light source. |
||||
|---|---|---|---|---|---|
| Moon |
A texture that sets the Moon in the sky. On the picture below, Moon Size and Moon Intensity are increased to demonstrate how the textures are applied:
The texture may also be used to imitate the extremely bright area around the light source. |
||||
| Sun Color |
Color multiplier for the Sun texture in the RGBA format. By default, the color is white.
|
||||
| Moon Color |
Color multiplier for the Moon texture in the RGBA format. By default, the color is white.
|
||||
| Sun Size | Angular size of the Sun in degrees. The value is set for an observer on the Earth. By default, the size of the Sun is 0.5 degrees as seen from the Earth. | ||||
| Moon Size | Angular size of the Moon in degrees. The value is set for an observer on the Earth. By default, the size of the Moon is 0.5 degrees as seen from the Earth. | ||||
| Sun Intensity |
Intensity multiplier for the Sun texture. It allows increasing/reducing brightness of the Sun.
|
||||
| Moon Intensity |
Intensity multiplier for the Moon texture. It allows increasing/reducing brightness of the Moon.
|
