GUI Mesh

A GUI Mesh is a non-flat GUI object based on an arbitrary mesh. If the mesh contains several surfaces, the same GUI will be rendered on each of them.GUI Mesh是基于任意网格的非平面GUI对象。如果网格包含多个表面，则将在每个表面上呈现相同的GUI。

注意

The GUI will be rendered according to the UV mapping of surfaces.GUI将根据曲面的UV贴图进行渲染。

Basically, the GUI Mesh is a non-flat display, on which GUI is rendered. You can interact with such GUI the same way as with GUI created via the Gui class.基本上，GUI Mesh是非平面显示器，在其上呈现GUI。您可以使用与通过Gui类创建的GUI相同的方式与此类GUI进行交互。

See also也可以看看#

You can add a GUI Mesh via UnigineEditor and then assign a widget to it via UnigineScript.您可以通过UnigineEditor添加GUI Mesh，然后通过UnigineScript为它分配一个小部件。

To add the GUI Mesh:要添加GUI Mesh：

1. Run the project with UnigineEditor.跑步UnigineEditor的项目。

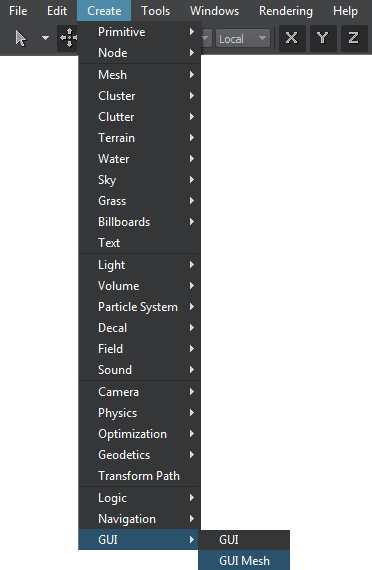

2. On the Menu bar, click Create -> GUI -> GUI Mesh.在菜单栏上，单击Create -> GUI -> GUI Mesh。



3. Specify a mesh on which the GUI will be rendered.指定将在其上呈现GUI的网格。
4. Place the GUI Mesh in the world and specify the required parameters for it.将GUI Mesh放置在世界上，为其指定所需的参数。
5. In the script, get the GUI object via the World.getNodeByName() (or World.getNodeByID() if you have the node index) and assign a widget to it by using functions of the ObjectGuiMesh class.在脚本中，通过World.getNodeByName()（或拥有节点索引的World.getNodeByID() if）获取GUI对象，并使用ObjectGuiMesh类的函数为其分配小部件。

In the Gui Mesh section of the Node tab, you can adjust the following parameters of the GUI Mesh:在Node选项卡的Gui Mesh部分中，可以调整GUI Mesh的以下参数：

Node tab, Gui Mesh sectionNode标签，Gui Mesh部分

Show Mouse	Indicates if the mouse cursor should be rendered in the GUI Mesh.指示是否应在GUI Mesh中呈现鼠标光标。
Control Distance	Distance at which the GUI Mesh becomes controllable.GUI Mesh可控制的距离。
Screen Width	Width of the GUI object in pixels.GUI对象的宽度（以像素为单位）。
Screen Height	Height of the GUI object in pixels.GUI对象的高度（以像素为单位）。
